Pressure loss calculation
Draw routes over PDF plans, assign systems and pipe sizes, and review segment pressure loss results.
Product Screenshots
See the MedGasCAD workflow.
Click any screenshot to open a larger view.

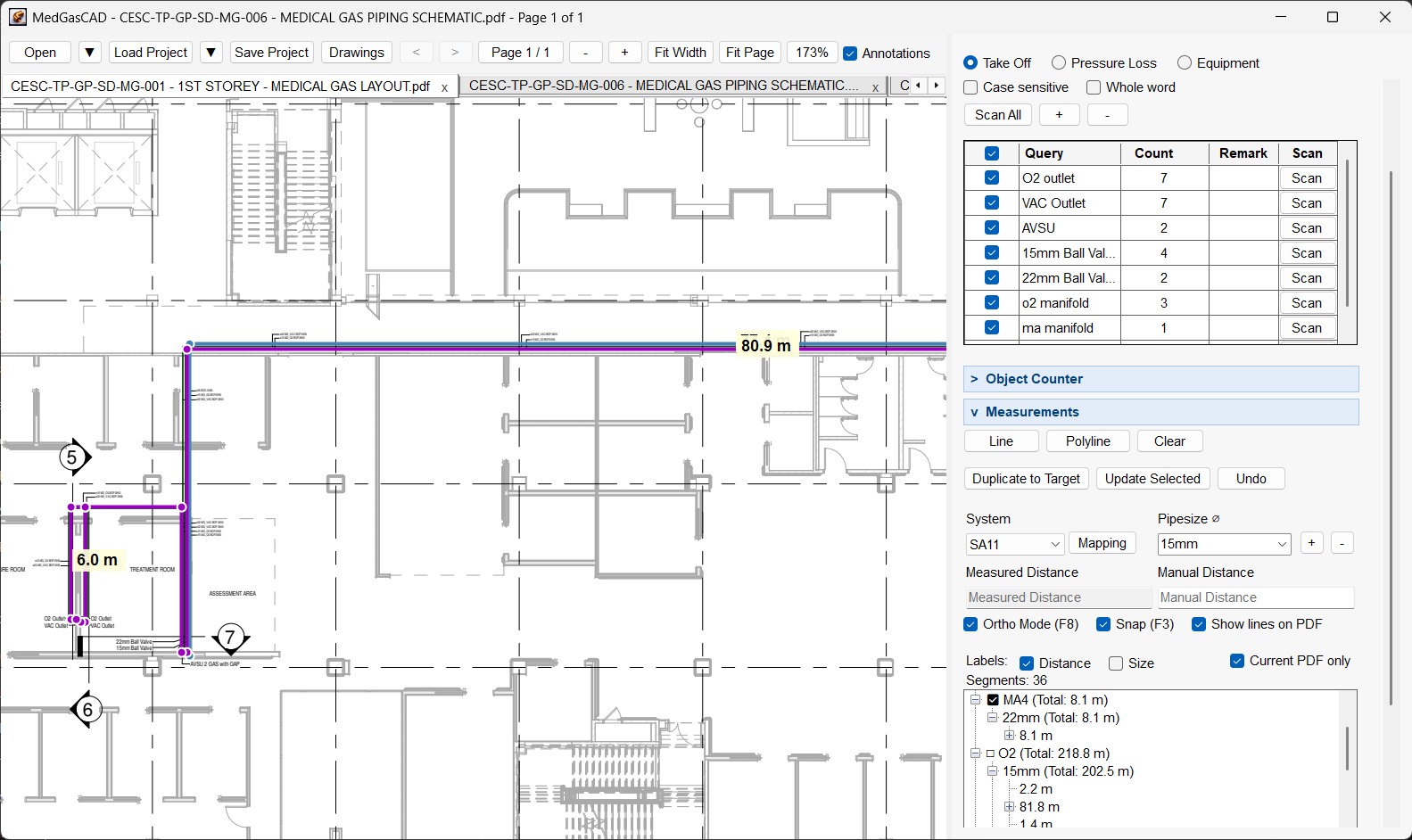

Material take-off
Summarise measured lengths, counted items, systems, pipe sizes, and PDF/page references for export.

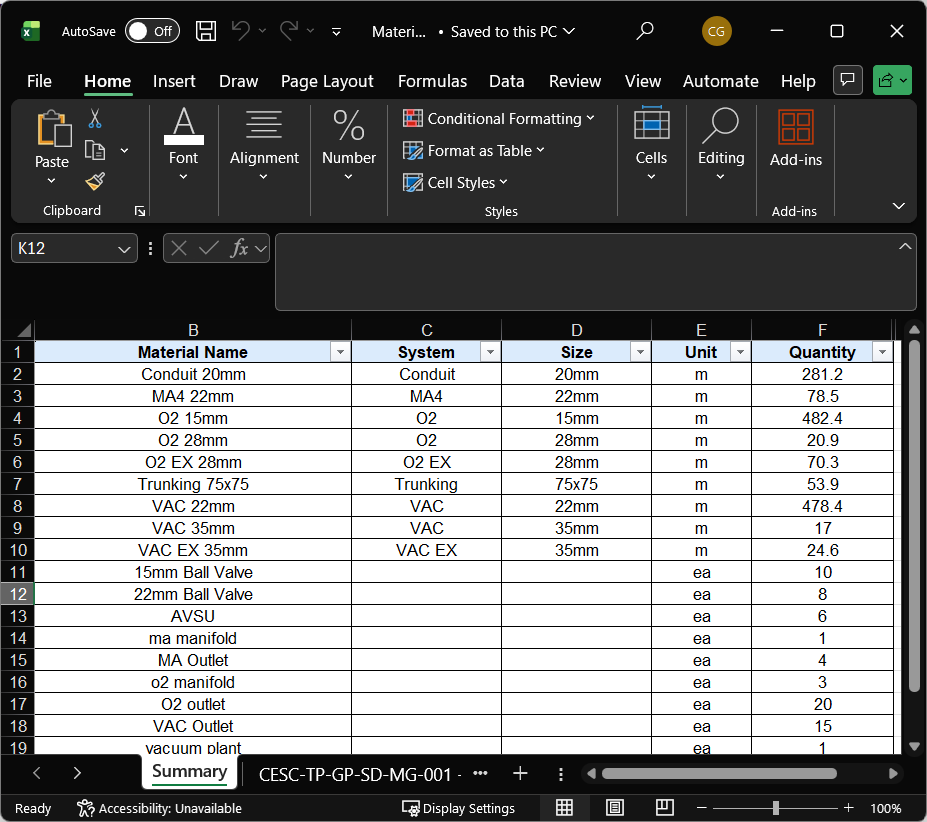

Excel-style reports
Produce structured reports for checking, coordination, and project records.

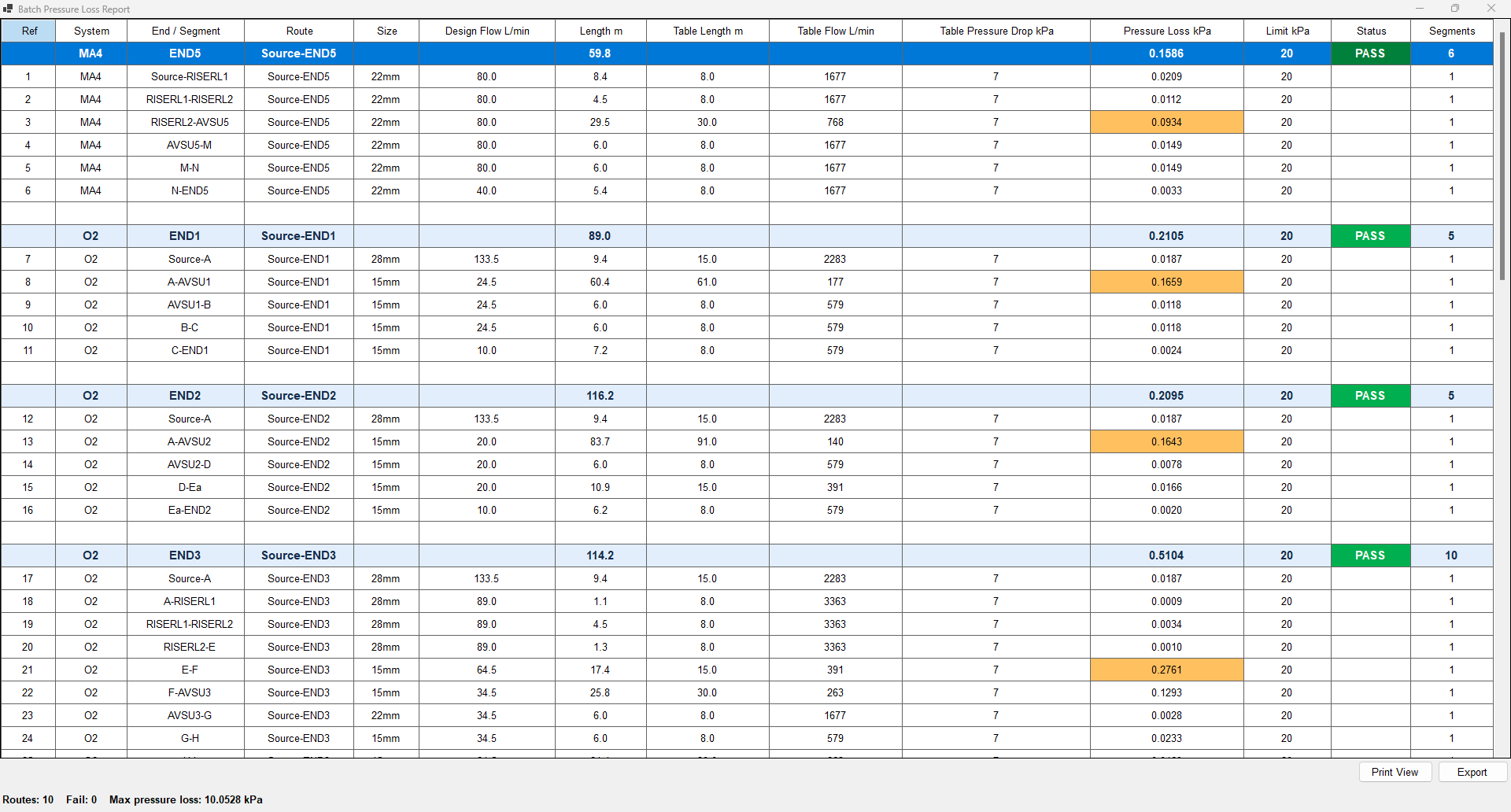

Batch pressure loss views
Create print views that show each route clearly against the source drawing.

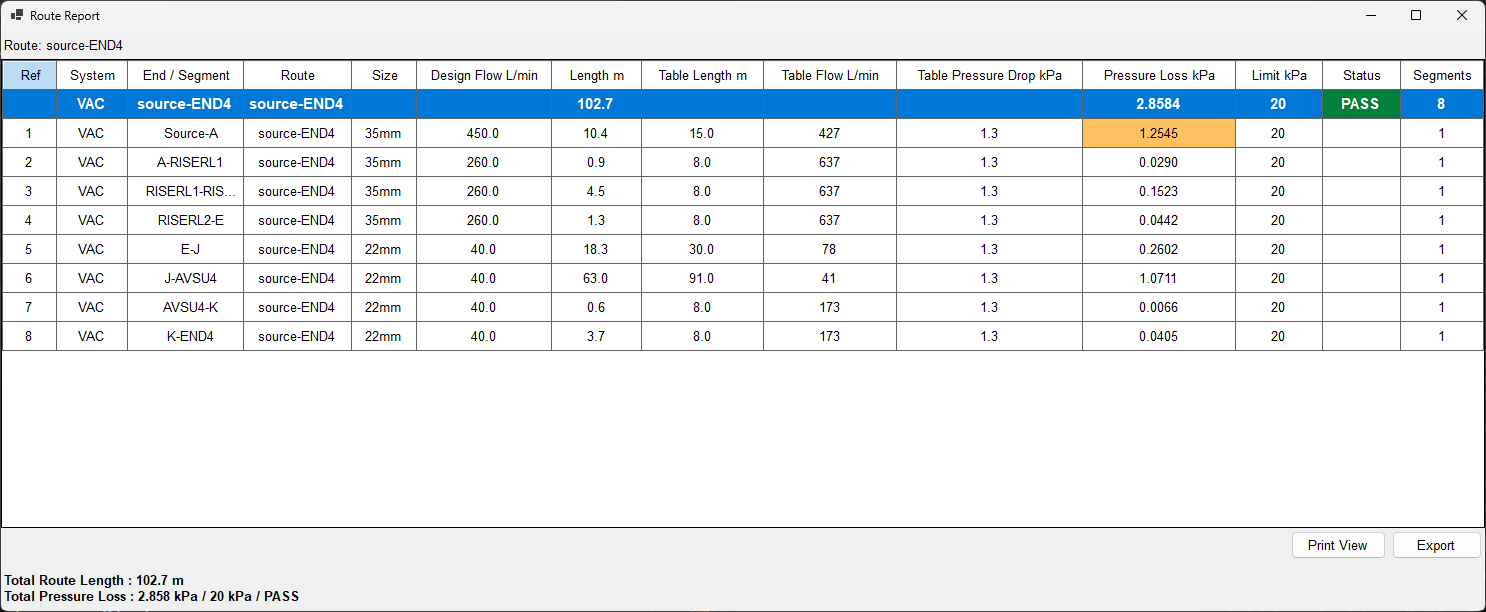

Pressure loss summary
Check route totals, pass/fail status, design flows, lengths, and table pressure loss data.

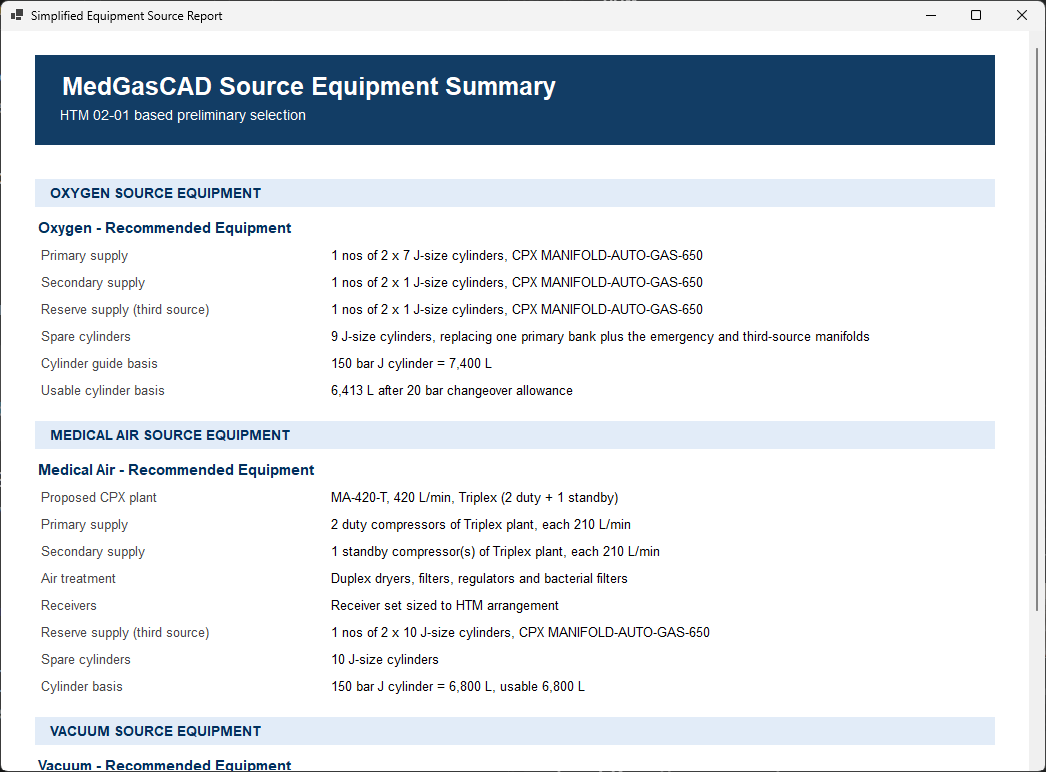

Equipment summaries
Use calculated design flows to support source equipment summaries and review documentation.
